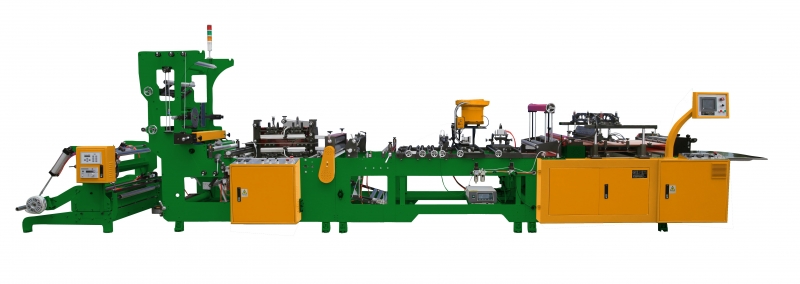

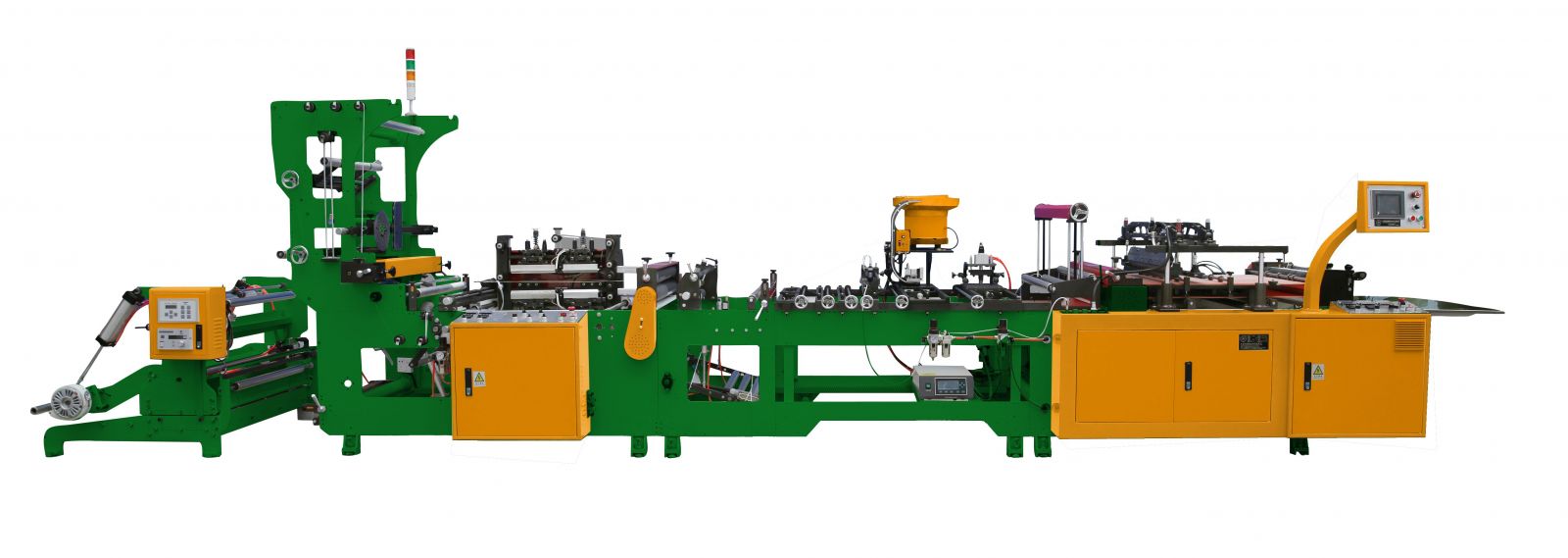

Zipper Bag Making Machine
Model: B500-ZPB/ B700-ZPB/ B1000-ZPB
 |
.jpg)
Zipper Bag Making Machine: Model- B500-ZPB/ B700-ZPB/ B1000-ZPB
Features:
*Zipper profile post seal system is effective in attaching the zipper profile on
PET, PA, PAL-PE, PP and multi-layer film.
*Ultrasonic pre-seal device with cooling punch ensures good sealing quality.
*Optional slider applicator is available for production of value-added zipper bag with slider
| Model | Suitable Material | Bag Width(mm) | Bag Length(mm) | Film Thickness(mm) | Max. Speed (Bag/min) |
| B500-ZPB | LDPE / PP | 50-450 | 50-700 | 0.02-0.2 | 180 |
| B700-ZPB | LDPE / PP | 50-650 | 50-900 | 0.02-0.2 | 120 |
| B1000-ZPB | LDPE / PP | 50-950 | 50-1000 | 0.02-0.2 | 100 |
See the process video as the link below:
https://www.youtube.com/watch?v=5AWeUlDTJ80
.jpg) |
 |
.jpg) |

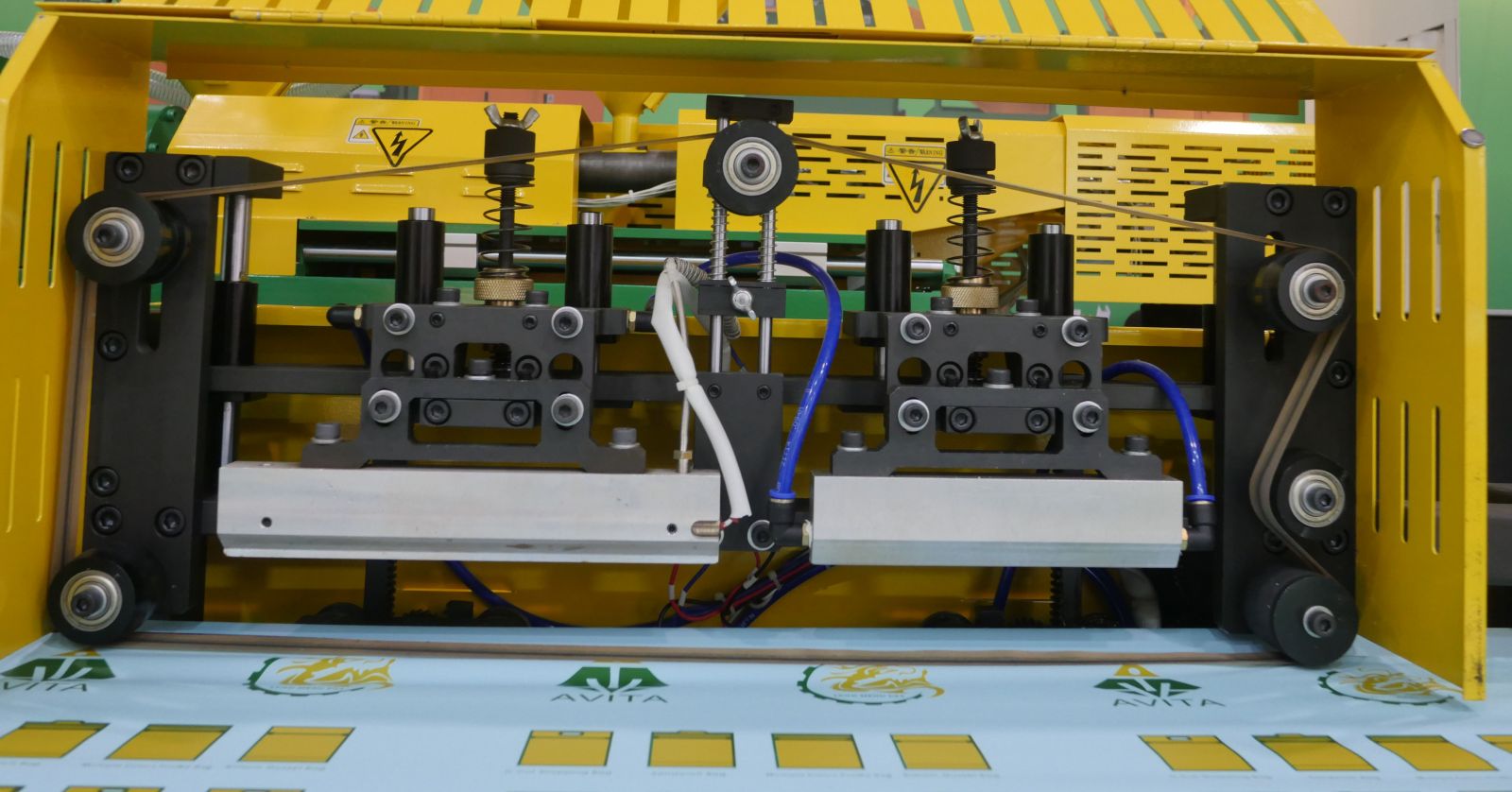

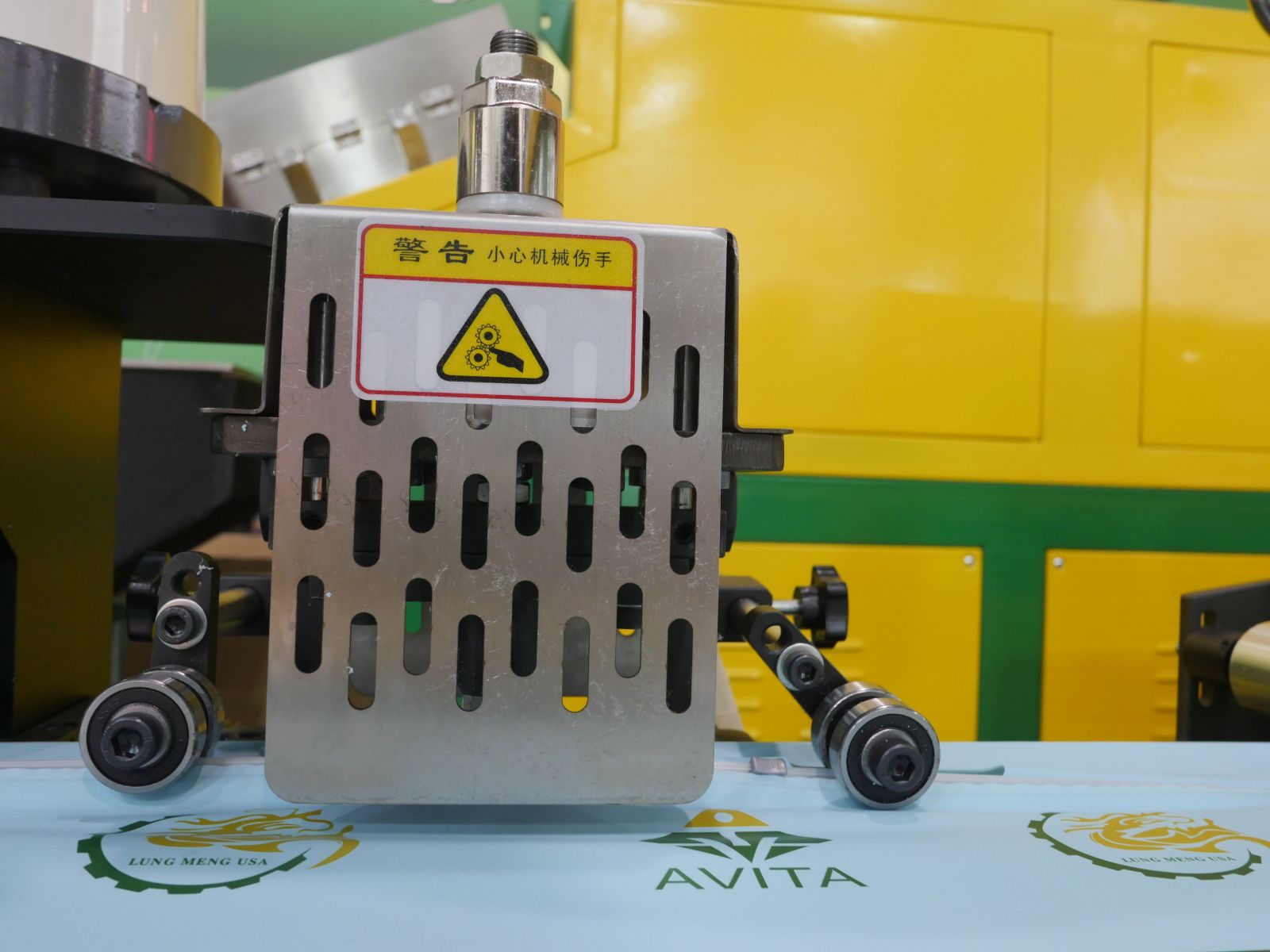

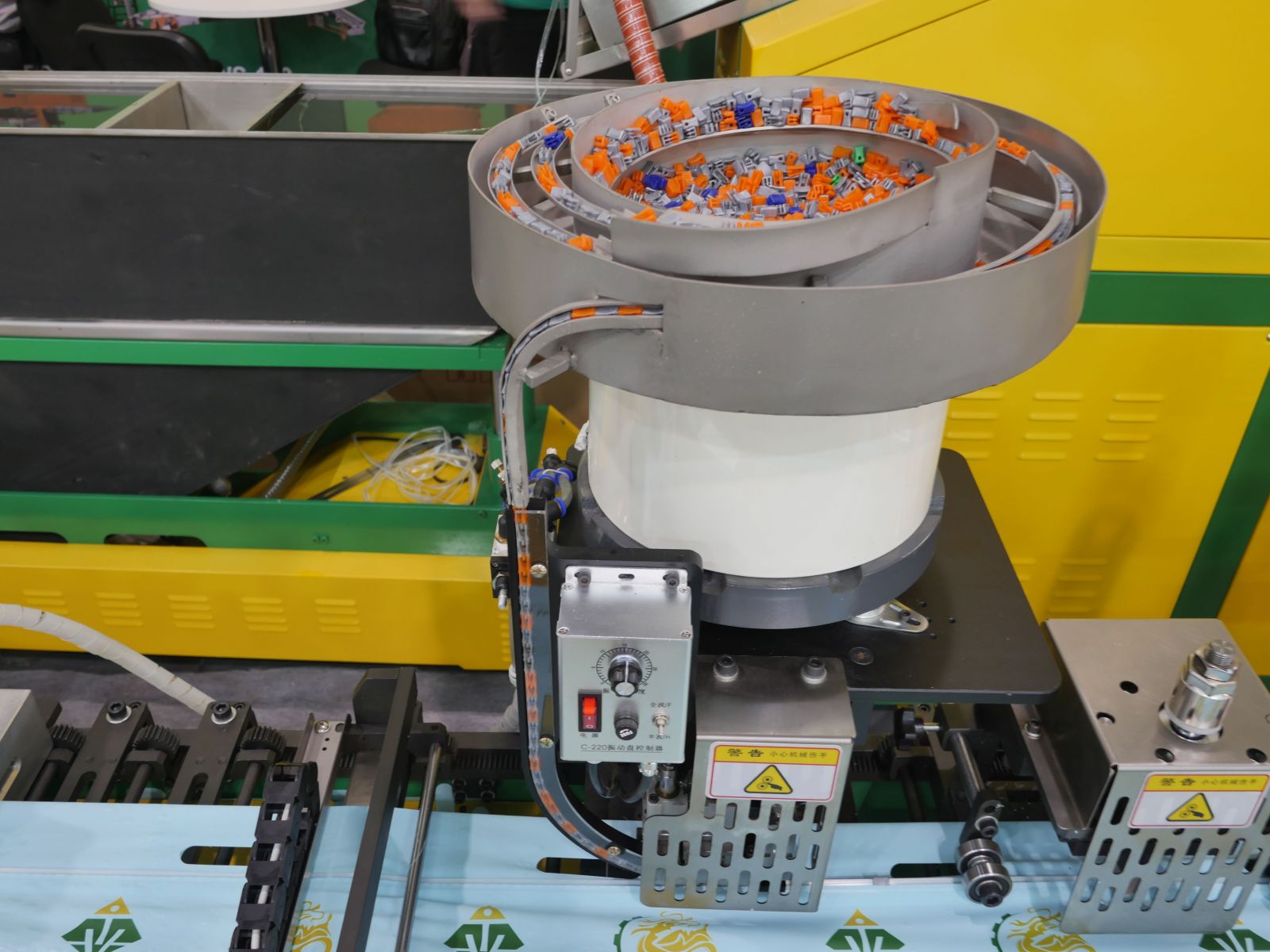

| Slider Insert Applicator | Zipper Post-Seal Unit | Punch Hole Unit |
 |
 |
 |

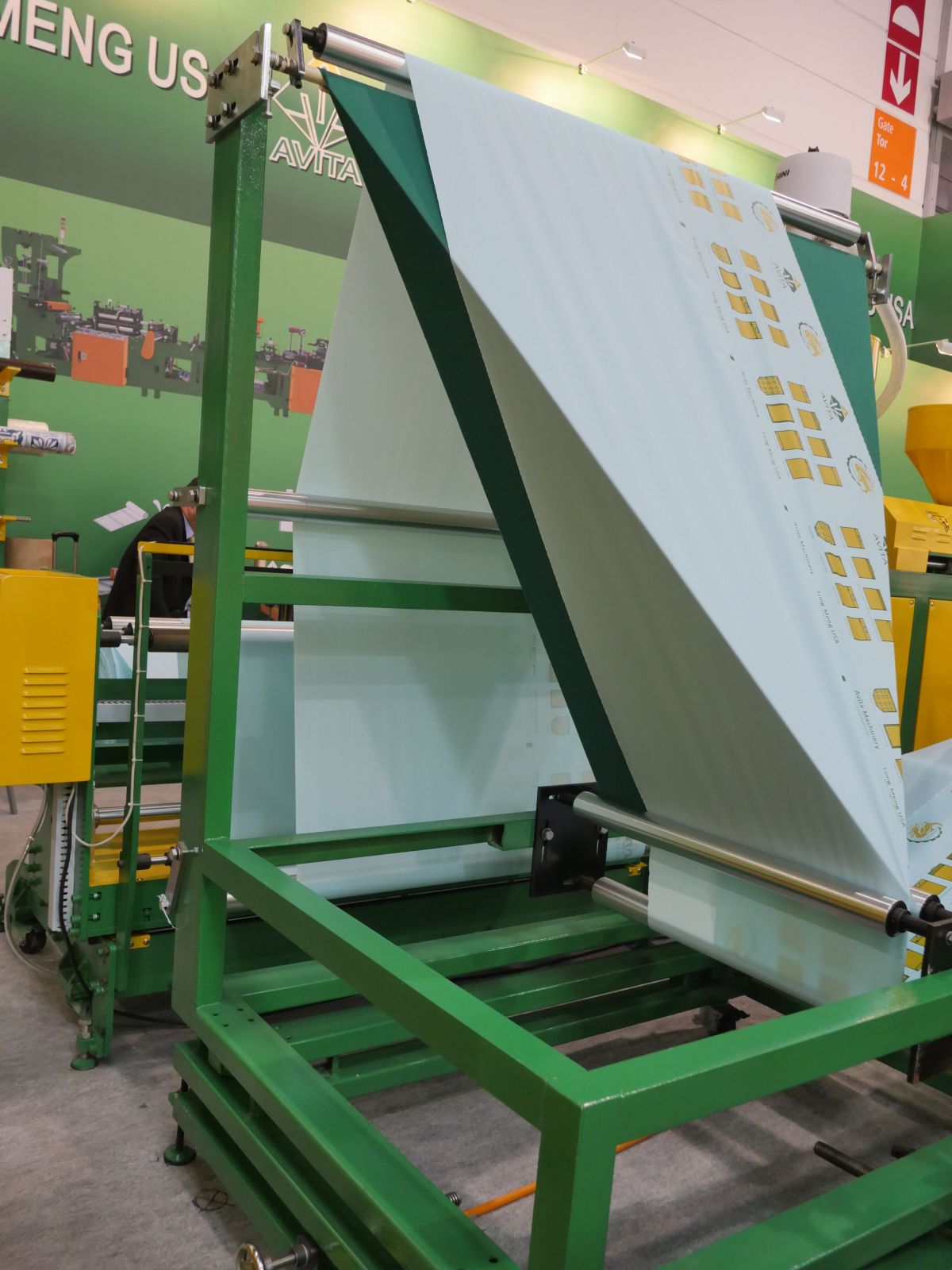

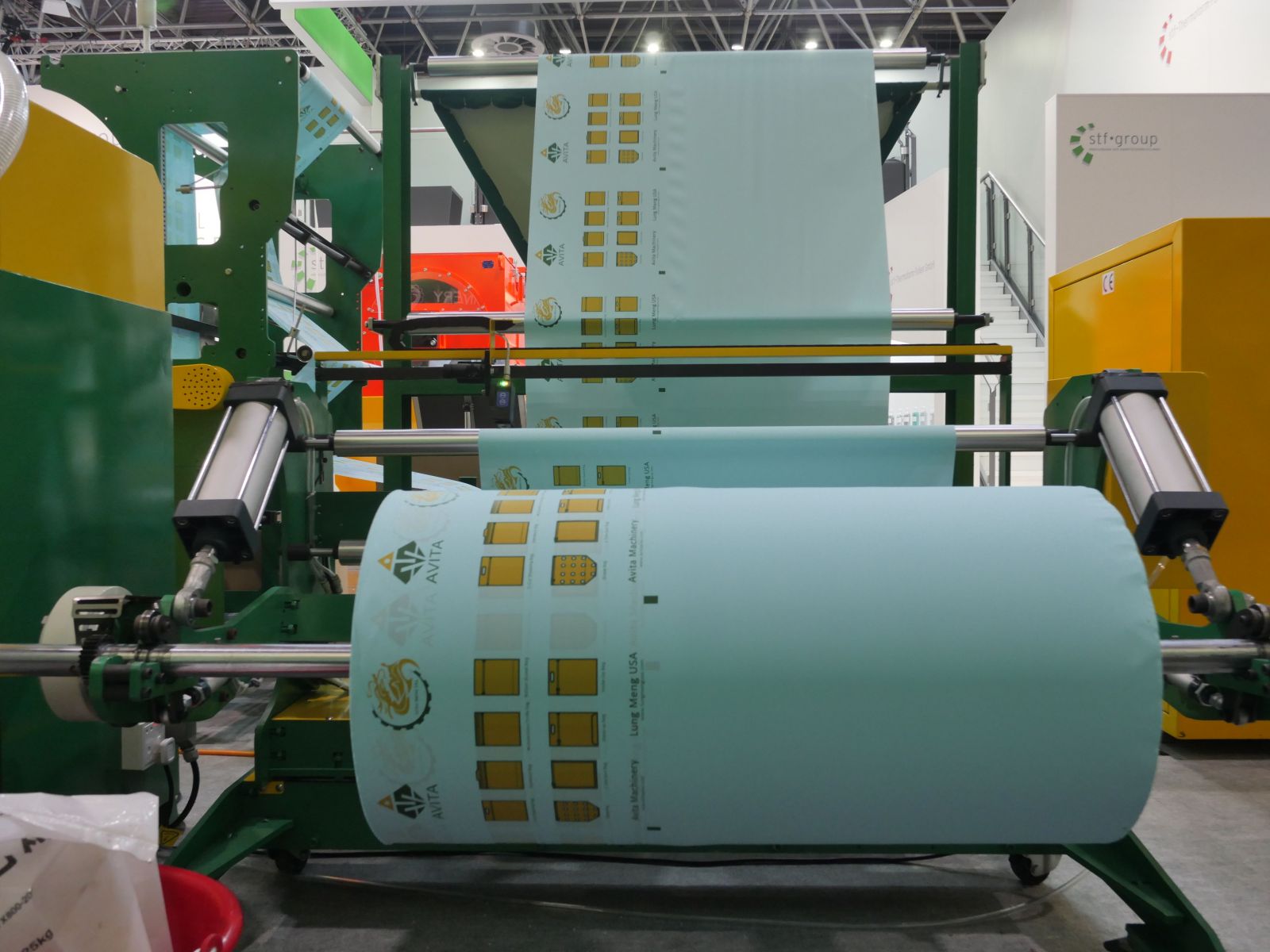

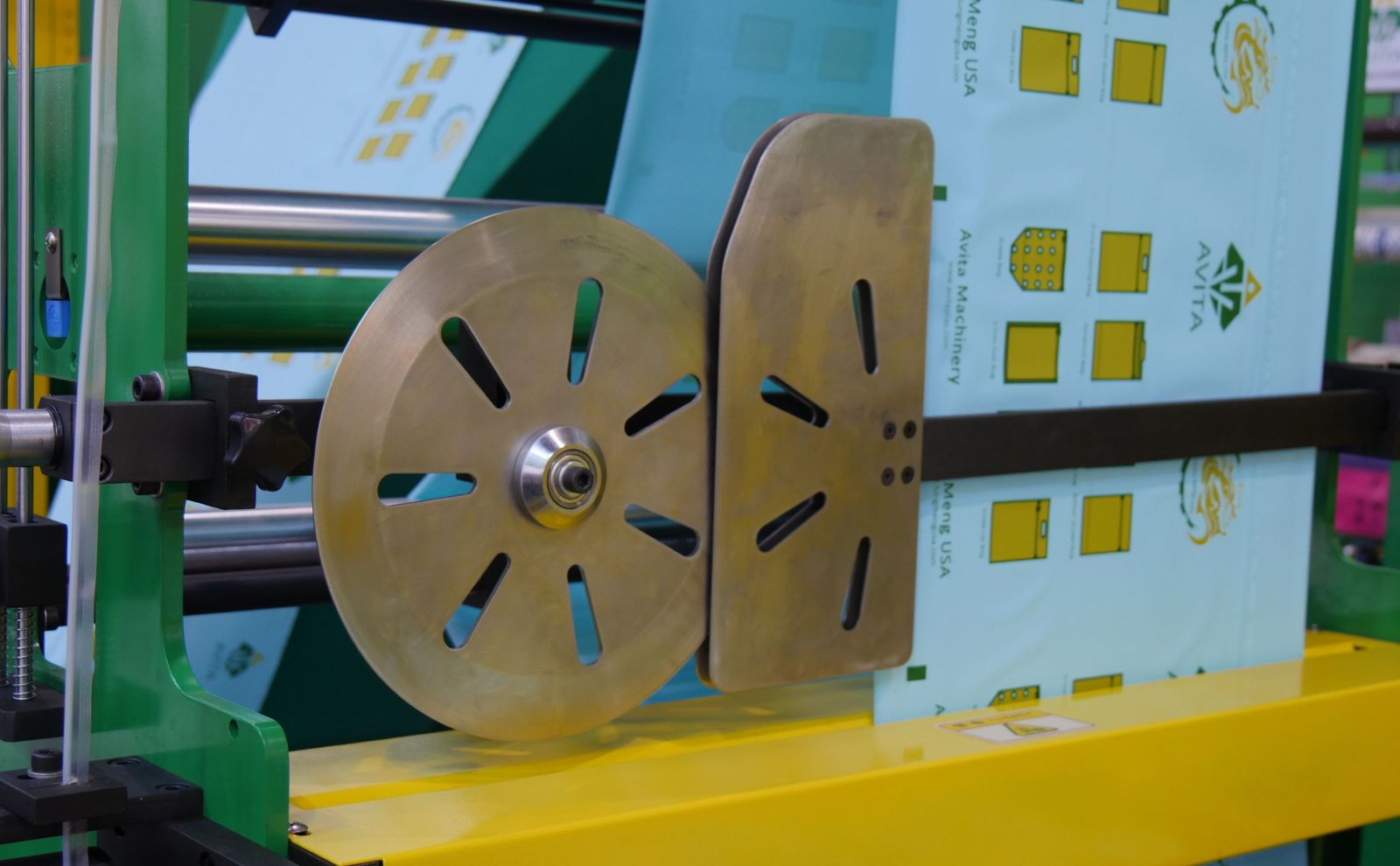

| Heavy Duty Unwind | Triangle Folding Unit | Bottom Gusset Unit |
